In-line Static Mixers

Chemical Plant & Engineering manufactures and supplies static (in-line) mixers for a range of applications and industries.

View all Products

How Static Mixers Work

Static mixers are inline mixing devices with no moving parts, thus require no external power source and are practically
maintenance free.

Homogeneous blends or dispersions are produced in a laminar, transitional or turbulent flow regime. This is achieved in
a very short length of pipe.

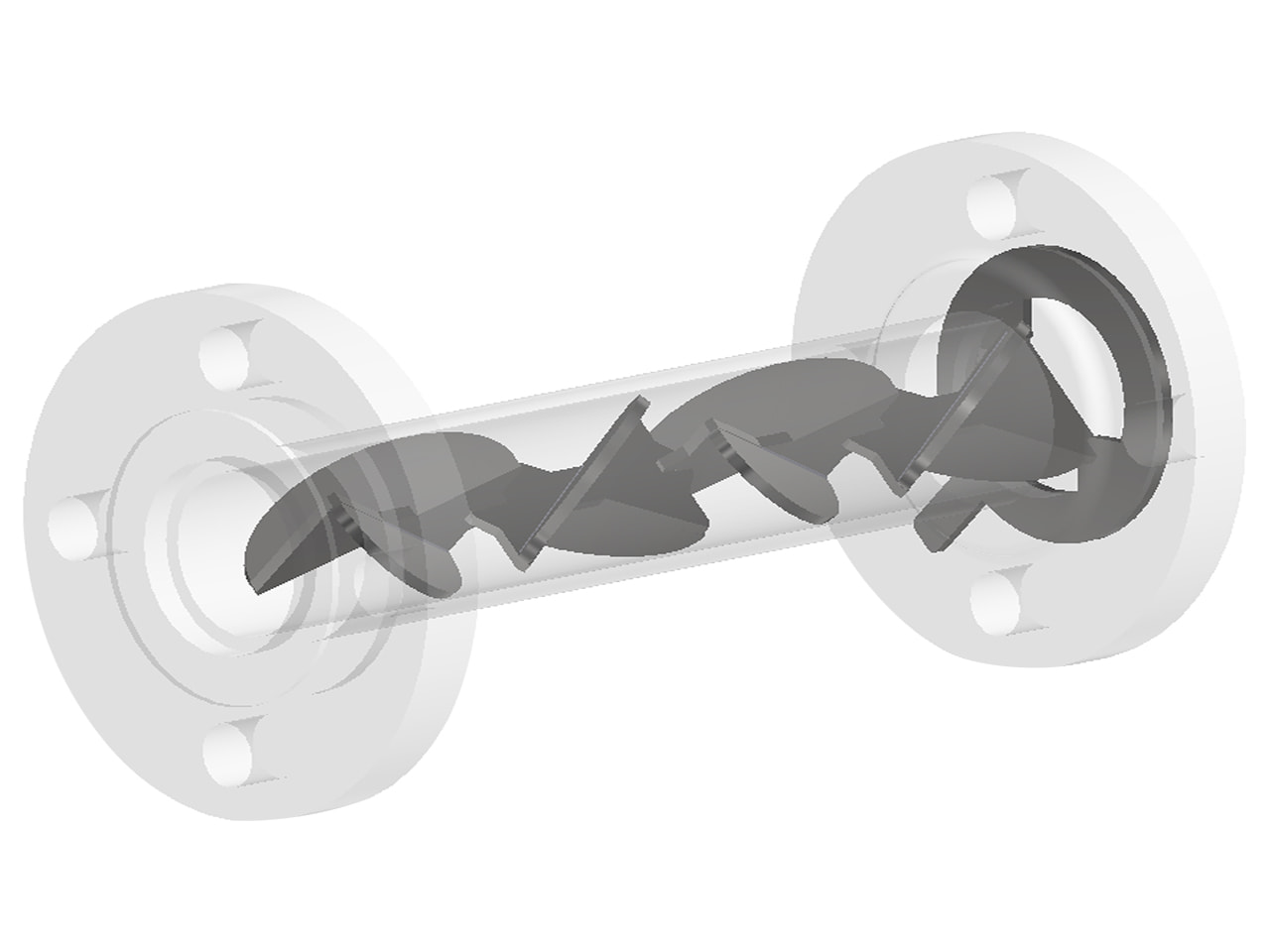

shorter in-line static mixer, inline mixing device with no moving parts

To achieve these results, the mixer relies partly or wholly on the following principles:

Radial eddying
Flow division
Shear reversal

These transport phenomena combine to eliminate concentration, velocity, and thermal gradients in a plug flow fashion without losses.

Typical Processes Static Mixers are Used in:
Static Mixers	Liquid – liquid blending Liquid – liquid dispersion Gas – liquid gas blending Heat transfer Thermal homogenisation

Applications of CPE In-line Static Mixers

Main Application	Description
Hydrocarbon & Chemical Process	Blending additives to process streams, Gas and liquid scrubbing, Direct steam heating, Laminar flow heat exchange, Oil / water sampling, Dispersion
Water and Wastewater Treatment	pH samples and control, Flash mixing of flocculation and coagulation aids, Disinfection, In-line aeration, Polymer addition
Food and Pharmaceutical Production	In-line gas sparging, Mixing fragile, Shear sensitive materials, Flavouring and coloration addition, Syrup dilution, Marbleising, Creating “layer effect”
Pulp and Paper Production	Stock bleaching and blending, Consistency control, Chemical preparation, Pulp and board production, Direct steam heating, pH control

CPE Static Mixer Material Options

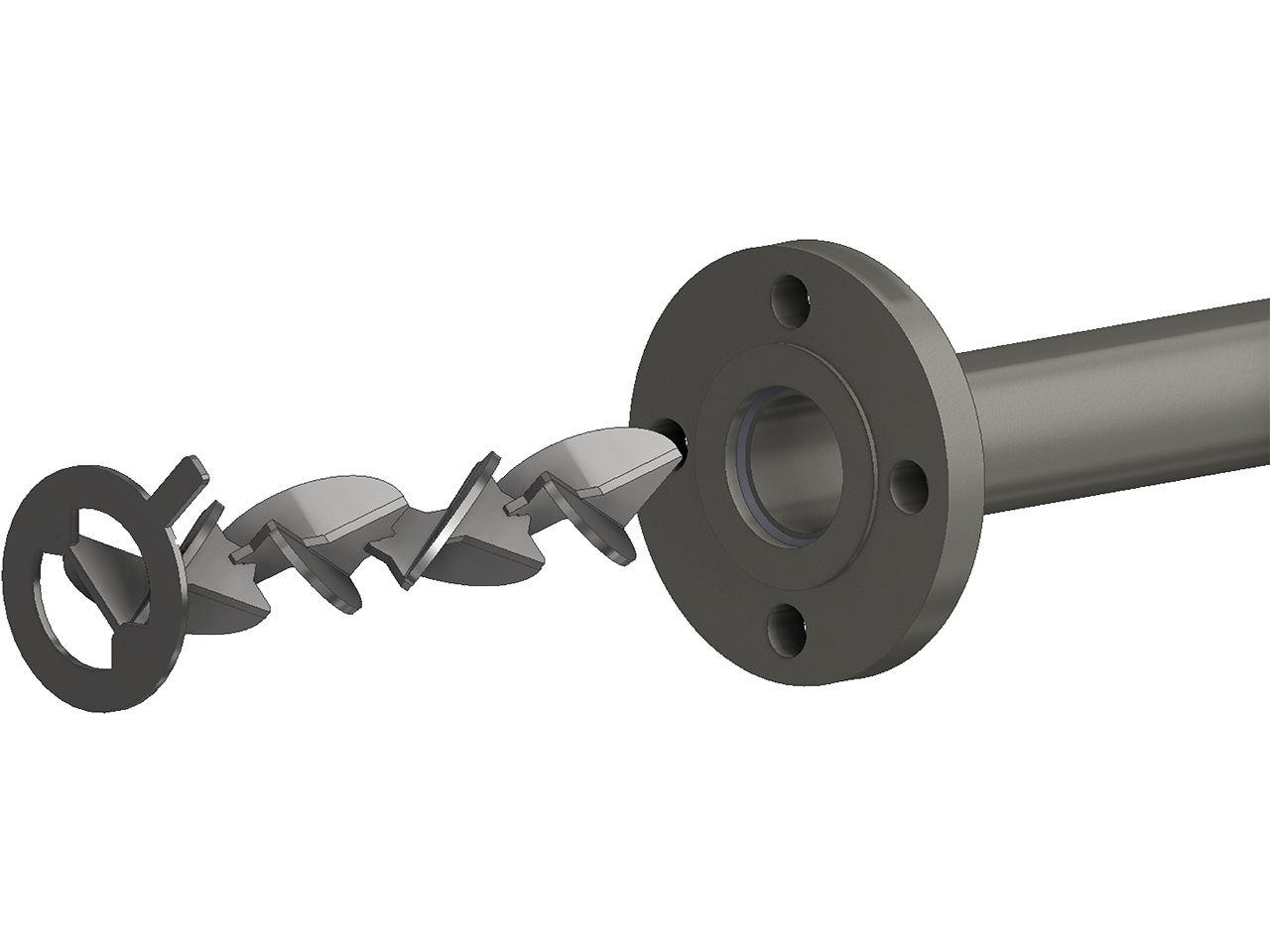

CPE static mixers can be supplied with removable, sanitary, or special element designs. Injectors and sparge systems are optional, as are jacketed units for heating and cooling.
