Portable Agitators and Clamp On Mixers

About Portable Agitators

Portable agitators are used for smaller size vessels or processes where the flexibility of a clamp-on arrangement is required.
This agitator type is available in a number of configurations depending on customer requirements.

CPE Portable Agitator Models

PA series directly driven from a 4-pole motor, 0.55kW – output speed of ~ 1440rpm.
PB series directly driven from a 6-pole motor 0.37kW – output speed of ~ 960rpm.
PG series incorporates a helical gearbox for larger duties. Available with motor sizes from 0.18 to 1.5kW and a range of output speeds.

Why Use Our Portable Agitators?

Extended housing below the drive mechanism manufactured from cast aluminium with a bearing to prevent bending moments being transferred back to the gear box or motor.
Housing includes a shaft seal to prevent ingress of particles into the housing.

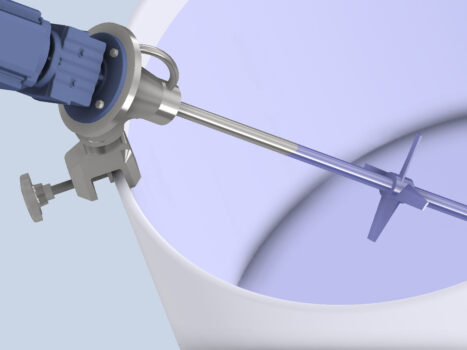

Integral clamp, which allows the agitator to be installed quickly and easily into the process vessel.

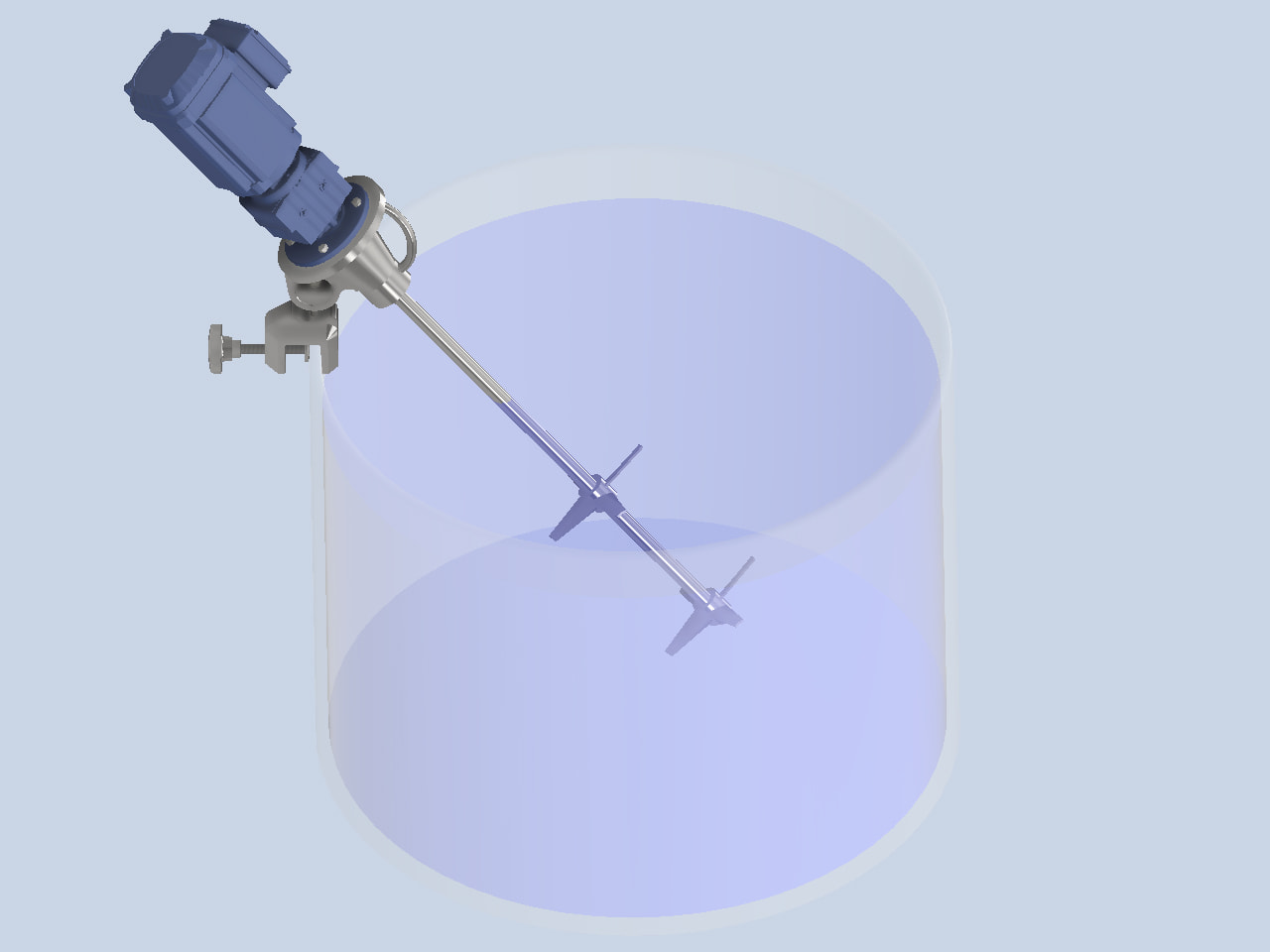

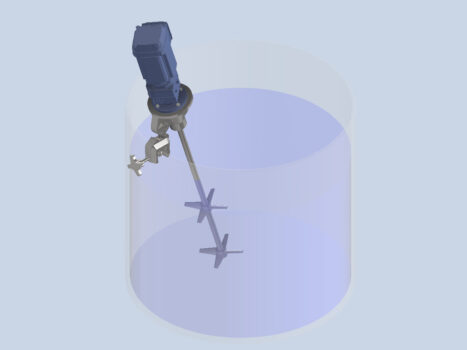

Swivel mount ensures that the shaft angle can be optimised for the process conditions.
Variable Speed Drive (VSD) option available.
Heavy duty and robust construction.

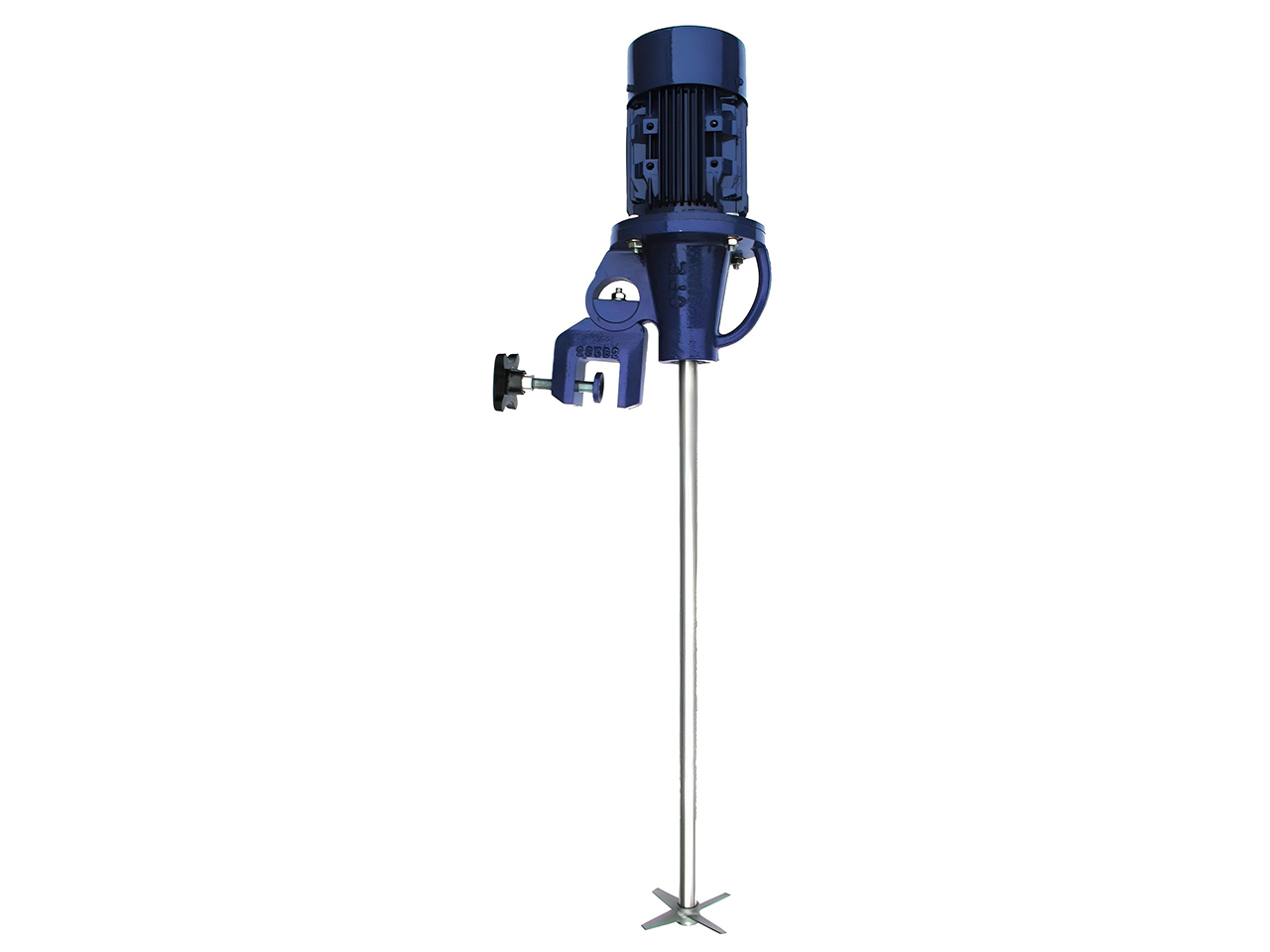

clamp on portable agitator with blue motor

< View Other Agitator Systems

Downloads

pdf icon
Portable Agitator System (CPE) – Flyer

pdf icon
Clamp – Mounted Agitator Selection Chart

pdf icon
Portable Agitator Mounting Guide

Agitator Mounting

Agitators can be top, side or bottom mounted.

Impeller Technology

CPE offers world’s best agitation technology. Our superior impeller design has the highest pumping to power ratio which can offer significant process improvement and cost savings.

Agitator Design

We custom design every agitator to ensure the best solution available is offered to our customers.

Agitator Retrofit & Process Optimisation

CPE specialises in agitation process analysis and optimisation. We offer process analysis and optimisation and retrofitting of old and underperforming agitators to enhance mixing performance and efficiency as well as improving final product quality.

Agitator Pilot Plant Testing and R&D

CPE has state-of-the-art laboratory facilities in Melbourne, Australia and offers a range of pilot plant agitators for in-house or customer trials.
